Low-voltage Resin Cast Busway

Short Description:

Applicable places: IR fully enclosed cast busway can be used underwater for a long time and is commonly used in special occasions such as trench, underwater, outdoor, high humidity, acid and alkali components and other harsh energized environments. Widely used in shipbuilding, power plants, petrochemicals, iron and steel metallurgy, machinery and electronics and large buildings.

Send email to us

Product Detail

Product Tags

Main features

Advantage

Uses a unique epoxy resin formulation that has been developed for use in waterproof busways. The resin is mixed in a sealed vacuum to ensure consistent quality, uniform distribution of the mixture, and no air voids.
Under controlled conditions of temperature and pressure, the material in the mold will gradually solidify. After curing, the resulting insulated busway is compact, void-free, with low internal stress and a smooth outer surface.
IEC61439-compliant feeder busways are available with protection ratings up to IP68.
The degree of protection provided by the housing. IP68 design allows the product to work for a period of time in water or laid in a cable duct.
The copper conductors are processed by a polishing saw process, which ensures high quality bar ends. This process is better than cutting and avoids secondary damage to the insulation material.

Vacuum stirring casting process

The IR pouring busway system introduces continuous casting and process design process of vacuum stirring technology for continuous metering, uniform mixing and degassing of epoxy resin, with precise and reliable process flow and simple and convenient control.

.Pour mix immediately into mould until completelyfield up to rim.Smoothen top surface with puttyknife. Remove mould after 6-12h.

System overview

① Straight sections ② Inlet units ③ Commutation units ④ Plug-in units ⑤ Accessories ⑥ JNM system coupling units ⑦ Expansion joints ⑧ Connection units ⑨ Low-voltage cabinet connection units ⑩ Transformer connection units

Installation steps

Step 1.Elements and conductor ends should line up correctly. The distance between the conductor ends may be adjusted between 32-40mm,allowing compensation of building tolerances. Slide the monobloc between the conductor end and adjust accordingly. The resulting type code enables the product to be ordered to be precisely defined.

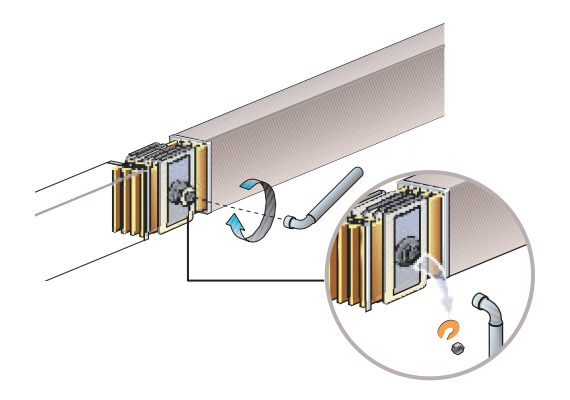

Step 2.Tighten the monobloc bolt unit the shear of the outer head.(80-84Nm).

Step 3.Apply demolding agent thinly on inner mould surface, fit mould over junction. Pour resin and hardener in empty bucket and mix for 5 minutes.

Step 4.Pour mix immediately into mould until completely field up to rim. Smoothen top surface with putty knife. Remove mould after 6-12h.

Product dimensions

Parameters

Product Name:	Pouring of waterproof and fireproof busway（Copper）
Product type：	IR
Place of Origin:	Jiangsu, China
Brand Name：	YG Elec
Executive standard	IEC61439-6,GB7251.6-2015
Certificate:	CE CCC RoHS Reach
Rated current（A）	400A~4000A
Rated working voltage Ue（V）	1000V
Rated insulation voltage Ui（V）	1000V
Protection Level:	IP68
Fire resistance time	60min
Rated frequency f（Hz）	50/60Hz
Conductor material:	Copper
Installation method	Horizontal hanging bracket, spring bracket

Essential details

Packing	Wooden Case
Warranty:	2 Years
Supply Ability	3000 Meter/Meters per Month
OEM/ODM:	Accept
Lead time	10-30（days）

Packing&Shipping

FAQ

Q: What are your prices?

A：The prices of our products fluctuate according to the daily price of raw materials and you can always contact us for the latest daily prices.

Q: Are you a manufacturer or trading company?

A: Zhenjiang Sunshine Electric Group Co., Ltd.（YG-Elec）is a professional manufacturer of busway system for 20 years.

Q: What is your payment term?

A: Our usual payment is 30%TT in advance ,70%TT before shipment (the bill of landing). For small quantity, we also accept Paypal and some other ways can also be done after discussion.

Q: Can I buy samples or small orders first and is the sample fee refundable?

A: Of course. We accept samples and small orders especially for new customers and of course the sample fee will be refundable when your order is confirmed.

Q: How soon will the order be delivered?

A: The delivery time depends on the quantity you ordered, generally about 15-30 days after deposit of payment.

Q: What is the quality of your products?

A: Quality is the life of our enterprise. As a factory, we can control all processes of production 100% and every single product will be tested qualified before shipping.

Q: How long is the warranty of your products?

A: Our warranty period is usually one year. But the warranty period can be extended after discussion and agreement.
