Low Voltage Enclosed Copper Busway
Product breakdown diagram
Product features
①Aluminum magnesium alloy enclosure
- The CCX busway system uses an aluminum magnesium alloy casing. It has strong mechanical properties and exceptional stability. The casing is lightweight and easy to install. Its heat dissipation is three times greater than that of steel.
- It has low magnetic properties, effectively preventing eddy current and hysteresis losses to the bus duct system.
- It also has excellent corrosion resistance, capable of enduring over 1000 hours of salt spray testing.
②Conductor-copper
- The CCX conductor is made of copper. The raw copper material imports from overseas and forming bars in China.
- The content of copper in the conductor is 99.95%. The conductor surface treatment adopts a unique alloy plating process, it makes the busway have lower contact resistance. Tin plating and silver plating are optional.
③DuPont insulating materials
- Insulation rating is at Class B, withstanding 130℃ heat.
- Each layer can endure over 10000V of voltage.
- It is non-toxic and free of halides even under high temperatures.
④Joint - fast and stable
- The dual bolt torque ensures rapid and steady installation; solely a 19mm standard wrench can finalize the installation and meet the intended torque amount.
- The unique butterfly spring guarantees enduring balance of pressure.
- The internal conductor junction cross section exceeds that of the trunking bar by 1.2 times, and the double-sided connection can efficiently diminish contact resistance.
⑤Busway plug
- The two terminal tabs and socket pins are completely coated with tin (silver plate as an alternative).
- The busbar plug is furnished with a comprehensive interlock system to guaranty electrical security.
- The socket plug's safeguarding unit is integrated with moisture-resistant silicone rubber, reaching an IP54 level of protection.
⑥Plug-in（Tap Off）Parameters
- Rated working voltage Ue（V）：400V
- Plug-in box current（A）:16A~1600A
- Socket layout: standard straight section of 3 meters with 1 to 10 outlets on the front and back. Choice to incorporate or omit MCCB, with the option to customize the brand of the MCCB.
System Overview
①Flexible Coupling ②Vertical Offset ③Feeder ④Horizontal Elbow ⑤Horizontal offset ⑥Vertical Elbow ⑦Combination Elbow ⑧Flanged End ⑨Flanged End Plate ⑩Rigid Vertical Hanger ⑪Spring Vertical Hanger ⑫Reducer ⑬Joint Cover ⑭Plug-in Unit ⑮End Closer

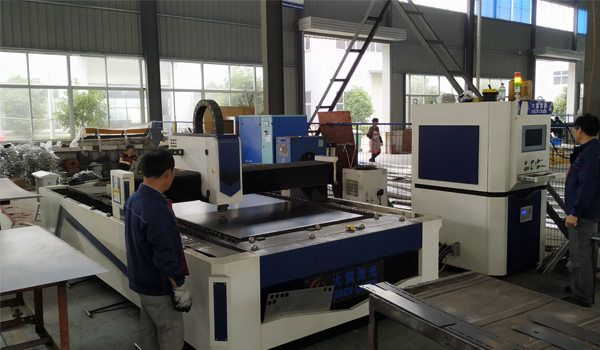

Advanced equipment
Product Parameters
| Product Name: | Busway |
| Product type： | CLX-2A |
| Place of Origin: | Jiangsu, China |
| Brand Name： | YG-Elec |
| Executive standard | IEC61439-6,GB7251.6-2015 |
| Certificate: | CE CCC RoHS Reach |
| Rated current（A） | 250A~4000A |
| Rated working voltage Ue（V） | 380V |
| Rated insulation voltage Ui（V） | 660V |
| Protection Level: | IP55 (with tap-off) ~IP67(without tap-off) |
| Rated frequency f（Hz） | 50/60Hz |
| Conductor material: | Aluminum |
| Color | Electricity-formulated paint application, standard RAL7035 pale grey, adjustable as per preference. |
| Installation method | Horizontal hanging bracket, spring bracket |
Essential details
|
Packing |
Wooden Case |
|
Warranty: |
2 Years |
|
Supply Ability |
20000 Meter/Meters per Month |
|
OEM/ODM: |
Accept |
|
Lead time |
15-30（days） |
Product dimensions
| Current level（A） | Product Name | Dense Busway/4P | Dense Busway/5P | ||
| Dimensions | Wide（mm） | High（mm） | Wide（mm） | High（mm） | |
| 250A | 128 | 92 | 128 | 92 | |
| 400A | 128 | 92 | 128 | 92 | |
| 500A | 128 | 102 | 128 | 102 | |
| 630A | 128 | 112 | 128 | 112 | |
| 800A | 128 | 127 | 128 | 127 | |
| 1000A | 128 | 147 | 128 | 147 | |
| 1250A | 128 | 167 | 128 | 167 | |
| 1600A | 128 | 207 | 128 | 207 | |
| 2000A | 128 | 257 | 128 | 257 | |
| 2500A | 128 | 307 | 128 | 307 | |
| 3150A | 128 | 402 | 128 | 402 | |
| 4000A | 128 | 482 | 128 | 482 | |
| 5000A | 128 | 482 | 128 | 482 | |
| 6300A | 128 | 582 | 128 | 582 | |
Packaging&Transport
FAQ
A：The prices of our products fluctuate according to the daily price of raw materials and you can always contact us for the latest daily prices.
A: Zhenjiang Sunshine Electric Group Co., Ltd.（YG-Elec） is a professional manufacturer of busway system for 20 years.
A: Our usual payment is 30%TT in advance ,70%TT before shipment (the bill of landing). For small quantity, we also accept Paypal and some other ways can also be done after discussion.
A: Of course. We accept samples and small orders especially for new customers and of course the sample fee will be refundable when your order is confirmed.
A: The delivery time depends on the quantity you ordered, generally about 15-30 days after deposit of payment.
A: Quality is the life of our enterprise. As a factory, we can control all processes of production 100% and every single product will be tested qualified before shipping.
A: Our warranty period is usually one year. But the warranty period can be extended after discussion and agreement.
WHY CHOOSE US
Our quality products and extensive design experience will help you complete your project more smoothly.
